Industrial Shed Manufacturer in Hooghly
Engineered for heavy industrial resilience, high wind resistance, and zero structural compromise. Mredula Engineering Works manufactures custom Pre-Engineered Building (PEB) sheds, factory workshops, warehouse steel roof trusses, and heavy structural steel sheds across Konnagar, Dankuni, Rishra, Serampore, Chandannagar, and Howrah.
Heavy Industrial PEB Steel Structure Fabrication
Fabricated at Konnagar Workshop & Erected in Hooghly Industrial Area
Premier Industrial Shed Manufacturing & Structural Steel Fabrication in Hooghly
Setting up an industrial manufacturing plant, warehouse storage facility, or commercial workshop in Hooghly requires a structural steel partner who understands structural dynamics, local climate conditions, and high-velocity wind loads. Mredula Engineering Works has established itself as the leading industrial shed manufacturer in Hooghly, delivering reliable, high-capacity Pre-Engineered Buildings (PEB) and heavy structural steel roof trusses since 1990.
From our state-of-the-art fabrication workshop in Konnagar (Hooghly district), we design, manufacture, supply, and erect heavy industrial sheds tailored for factory owners, logistics hubs, chemical processing units, rice mills, cold storages, and commercial yards across Konnagar, Dankuni Industrial Zone, Rishra, Serampore, Uttarpara, Hindmotor, Chandannagar, Chinsurah, and Howrah.
Our engineering approach integrates rigorous IS 800:2007 structural code standards, premium MS heavy I-beams, built-up column sections, tubular roof trusses, and color-coated Galvalume profile roofing sheets. Whether you need a 2,000 sq ft workshop extension or a 50,000 sq ft mega warehouse, we guarantee optimal load distribution, earthquake resistance, anti-corrosion protection, and rapid turnaround time.
PEB Factory Shed Structure
Clear-span steel column grid

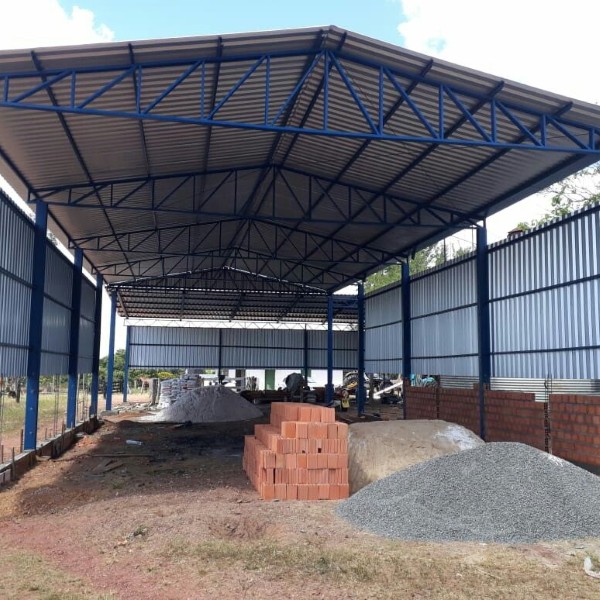

Industrial Roof Sheeting
High-tensile Galvalume sheets

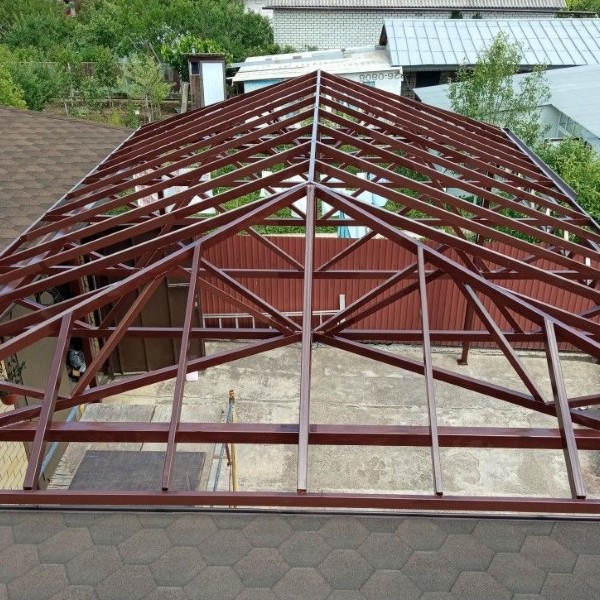

Warehouse Frame Erection
Heavy anchor bolt assembly
Workshop & Yard Sheds
Custom clear height design
Custom Engineering Solutions
Types of Industrial Sheds Manufactured in Hooghly
We engineer specialized industrial shed structures configured for specific functional requirements, crane loads, floor clearance, and atmospheric protection.
Pre-Engineered Building (PEB) Sheds
Ideal for large manufacturing plants and logistics centers. Designed using tapered built-up structural I-sections for maximum clear-span space up to 60 meters without internal obstruction columns.
- ▸ 40% faster on-site assembly
- ▸ High strength-to-weight ratio
- ▸ Easy future span expansion
Factory & Workshop Sheds
Heavy structural steel frame sheds integrated with crane runway girders (EOT crane capacity up to 20 Tons), thermal roof insulation, and forced turbo ventilation for active manufacturing lines.
- ▸ Integrated EOT crane girders
- ▸ Polycarbonate daylight skylights
- ▸ High eave height clearance
Warehouse & Logistics Sheds
Designed for heavy inventory storage, godowns, and logistics parks in Dankuni and Howrah. Engineered with wide bay spacing, heavy loading dock canopy extensions, and rainwater gutting systems.
- ▸ Maximum volumetric storage efficiency
- ▸ Integrated perimeter brickwork interface
- ▸ Heavy rainwater gutter channels
Tubular Truss & Curved Roof Sheds
Precision-welded MS pipe and angle trusses for curved arch roofs, A-frame sheds, and semi-open fabrication yards. Excellent structural stability against strong cyclonic gusts.
- ▸ High aesthetic curved elevation
- ▸ Reduced wind uplift pressure
- ▸ Cost-effective for medium spans
Rice Mill & Agricultural Sheds
Tailored for rice processing units, cold storage yards, and agricultural godowns in Tarakeswar, Singur, and rural Hooghly. Features anti-corrosive primer and pest-proof structural seals.
- ▸ Anti-corrosion chemical treatment
- ▸ Maximum thermal insulation option
- ▸ Fast turnkey erection
Mezzanine & Multi-Tier Sheds
Maximize vertical floor space by integrating structural steel mezzanine floors inside industrial sheds. Features heavy ISMB column grid supports and heavy-duty metal decking.
- ▸ Doubles usable floor square footage
- ▸ High load capacity (500kg - 2Ton/sq.m)
- ▸ Integrated staircases & safety handrails
Built to Resist Bengal's Severe Monsoons & High Cyclonic Winds
The Gangetic plains of Hooghly, Howrah, and Kolkata experience intense seasonal monsoons and high wind velocity. Every industrial shed manufactured by Mredula Engineering Works undergoes rigorous design load testing based on IS 875 (Part 3) Wind Load Standards.
High-tensile foundation bolts anchored deep into RCC footings for ultimate uplift stability.
55% Aluminum-Zinc alloy coating providing 4x longer rust-free life than plain GI sheets.
Visual Proof & Inspection
Project Execution & Workshop Gallery
Explore site photos, structural erection progress, and video walkthroughs of industrial sheds manufactured across Hooghly & Dankuni.
PEB Structure
PEB Heavy Steel Column Assembly
Site: Konnagar Workshop

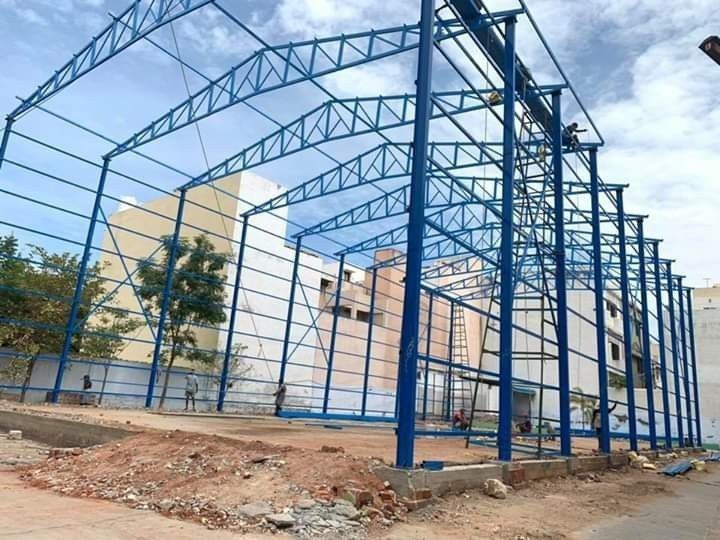

Factory Workshop
Factory Roof Truss & Crane Girders
Site: Dankuni Industrial Belt
Roof Installation
AZ150 Galvalume Roof Sheet Fitting
Site: Rishra Project Site
Foundation & Frame
Heavy Anchor Bolt & Stanchion Grid
Site: Serampore Industrial Area
Commercial Godown
Commercial Yard Storage Shed
Site: Uttarpara Industrial Zone

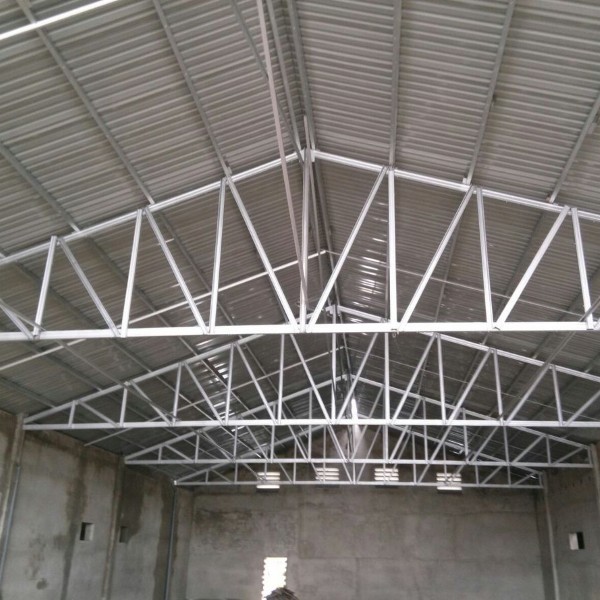

Curved Truss
Curved Arch Tubular Steel Truss
Site: Chandannagar Yard
On-Site Structural Crane Erection
Turnkey Erection Video Walkthrough
Workshop Component Fabrication
MIG Welding & Component Prep
Technical Comparison
PEB Shed vs Conventional Truss Shed Specifications
Compare structural parameters to select the optimal design for your industrial project in Hooghly.
| Specification Parameter | Pre-Engineered Building (PEB) Shed | Conventional Heavy Steel Truss Shed |
|---|---|---|
| Primary Structural Steel | Built-Up Tapered Columns & Rafters (IS 2062 Grade E350) | ISMB/ISMC Columns & Heavy Tubular/Angle Trusses |
| Clear Span Capability | Up to 60+ Meters without Center Columns | Up to 25–30 Meters Span |
| Roof Sheeting Material | 0.47mm - 0.55mm Bare Galvalume / Color Coated Profile Sheets | 0.45mm - 0.50mm Galvanized Iron (GI) or Galvalume Sheets |
| Wind Load Design Standard | IS 875 (Part 3) engineered up to 180 km/h wind gusts | Standard Zone 4 Structural Wind Pressure Resistance |
| Erection Speed & On-Site Assembly | Fast Bolt-Together Assembly (3 to 4 Weeks Turnkey) | On-Site Weld & Bolt Fabrication (4 to 6 Weeks) |
| Anti-Corrosion Surface Coating | Blast Cleaned + Epoxy Primer + Polyurethane Top Coat | Red Oxide Zinc Chromate Primer + Synthetic Enamel Paint |
| Crane Integration | Direct Bracket Support on Primary Columns (Up to 20 Ton Crane) | Separate Crane Stanchion Columns required |
Our Turnkey Workflow
6-Step Industrial Shed Manufacturing Process
From site survey in Hooghly to final roof sheet installation, we maintain stringent safety and precision standards at every step.
Site Survey & Cad Design
Our engineers visit your site in Hooghly to measure dimensions, evaluate soil foundation specs, and prepare detailed CAD structural layout drafts.
Material Selection & IS Testing
Procurement of certified IS 2062 heavy steel sections, MS hollow pipes, purlins, and high-tensile Galvalume coil sheets from reputed manufacturers.
Precision Workshop Fabrication
Cutting, plasma slitting, MIG welding, gusset plate drilling, and truss assembly executed inside our specialized Konnagar workshop facility.
Anti-Rust & Surface Coating
Thorough surface cleaning followed by heavy-duty anti-corrosive red oxide primer and industrial protective topcoats to ensure zero rusting.
On-Site Erection & Anchoring
Transport to project site, crane-assisted column alignment, heavy anchor bolt tightening, rafter hoisting, and structural frame plumbing.
Roofing, Ventilation & Handover
Installation of profile roof sheets, translucent skylight panels, ridge caps, turbo ventilators, rainwater gutters, and final safety audit.
Regional Coverage
Industrial Areas Served Across Hooghly & Nearby Hubs
We provide rapid site inspection, material transport, and structural erection services across all major industrial belts in West Bengal.
Got Questions?
Frequently Asked Questions (FAQ)
Clear answers regarding industrial shed manufacturing, pricing, steel grades, and timelines in Hooghly.
What is the average cost of industrial shed manufacturing in Hooghly?
Industrial shed fabrication costs in Hooghly range from ₹180 to ₹380 per sq. ft. for standard tubular pipe or angle truss sheds, and ₹260 to ₹450+ per sq. ft. for heavy Pre-Engineered Building (PEB) sheds. Final pricing depends on column height clearance, clear span width, steel tonnage per sq ft, crane girder inclusion, and roof sheet specification (Bare Galvalume vs Color-Coated AZ150).
Why choose PEB sheds over conventional steel truss sheds?
Pre-Engineered Buildings (PEB) utilize tapered built-up steel sections designed specifically according to stress distribution diagrams. This provides up to 30% savings in steel weight while allowing massive clear spans (up to 60+ meters) without internal columns. PEB sheds are also erected 40% faster on-site.
Do you provide complimentary on-site measurement in Dankuni & Hooghly?
Yes! Our structural engineering team offers free on-site inspections, laser measurements, and detailed BOQ (Bill of Quantities) cost estimates for industrial clients in Konnagar, Dankuni, Rishra, Serampore, Uttarpara, Howrah, and Kolkata.
How long does it take to construct a 5,000 to 10,000 sq ft industrial shed?
Fabrication of columns, rafters, purlins, and gusset plates at our Konnagar workshop takes about 3 to 4 weeks. On-site alignment, column erection, purlin fixing, and roof sheeting are completed within 10 to 15 working days.
What roofing sheets are recommended for Bengal's humid industrial climate?
We strongly recommend 0.47mm or 0.50mm Galvalume Profile Sheets with AZ150 Zinc-Aluminium coating. Galvalume reflects solar heat efficiently (keeping interior temperatures 4–6°C cooler) and provides superior resistance against atmospheric corrosion compared to standard galvanized zinc sheets.
Can you integrate EOT crane runway girders into the shed structure?
Absolutely. We design heavy stanchion columns with integrated crane bracket supports and runway girders rated for 3-Ton, 5-Ton, 10-Ton, and up to 20-Ton Overhead Electric Traveling (EOT) cranes.
